# Net Control Weigth

This module is dedicated to all those involved in packaging filling. In fact, the page analyzes data related to unit weight data.

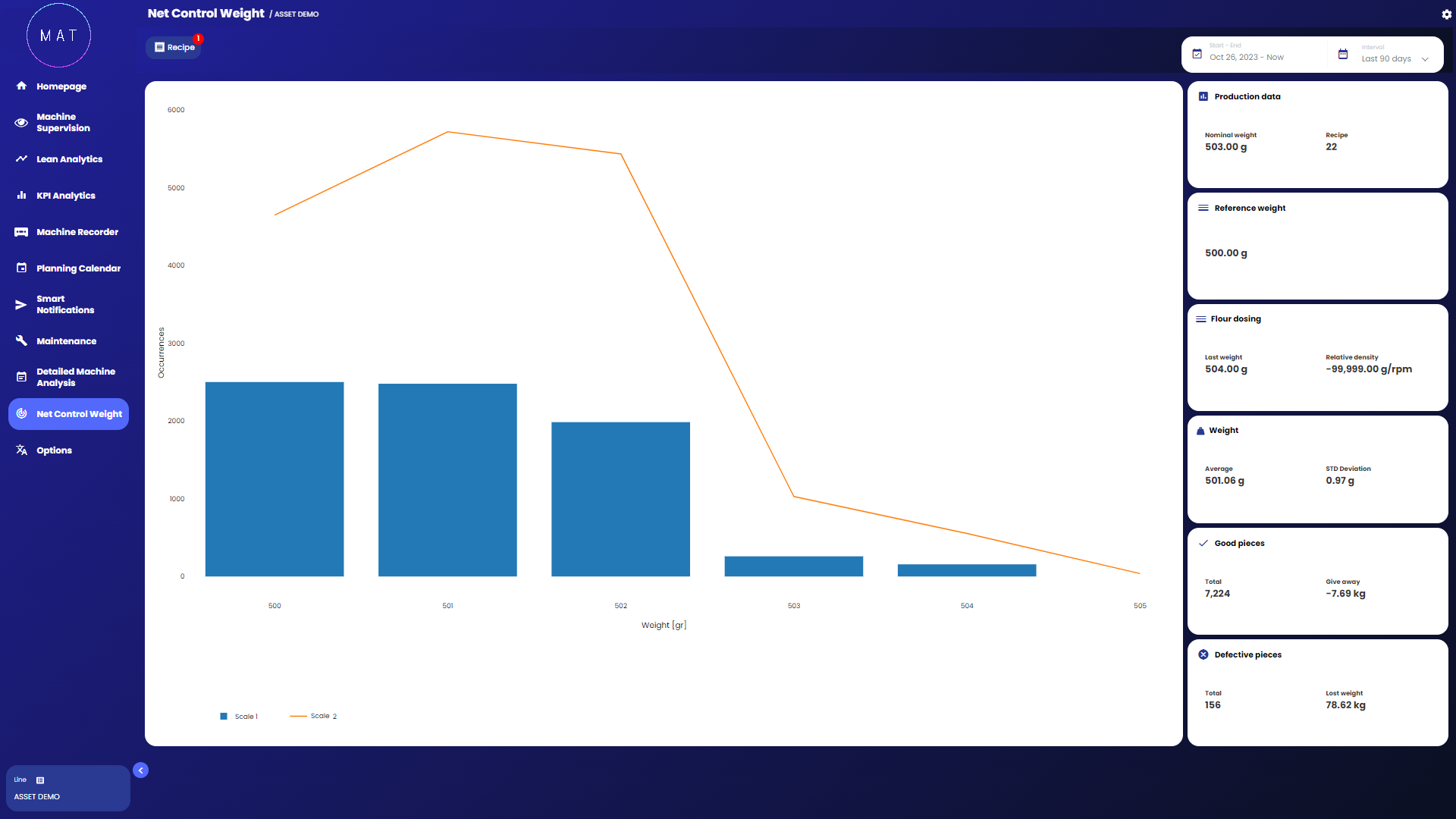

<figure><img src="https://content.gitbook.com/content/pAbYPeH0IeVsC8b0gI87/blobs/eJa0Vm8ceMUgsHpPOlk8/netControlWeight.png" alt=""><figcaption><p>Image A</p></figcaption></figure>

In the central part, you can see a chart that represents how many packages have been weighed and met a certain weight criterion. There can be multiple charts if you have multiple scales, and for each scale, a trace can be customized as desired.

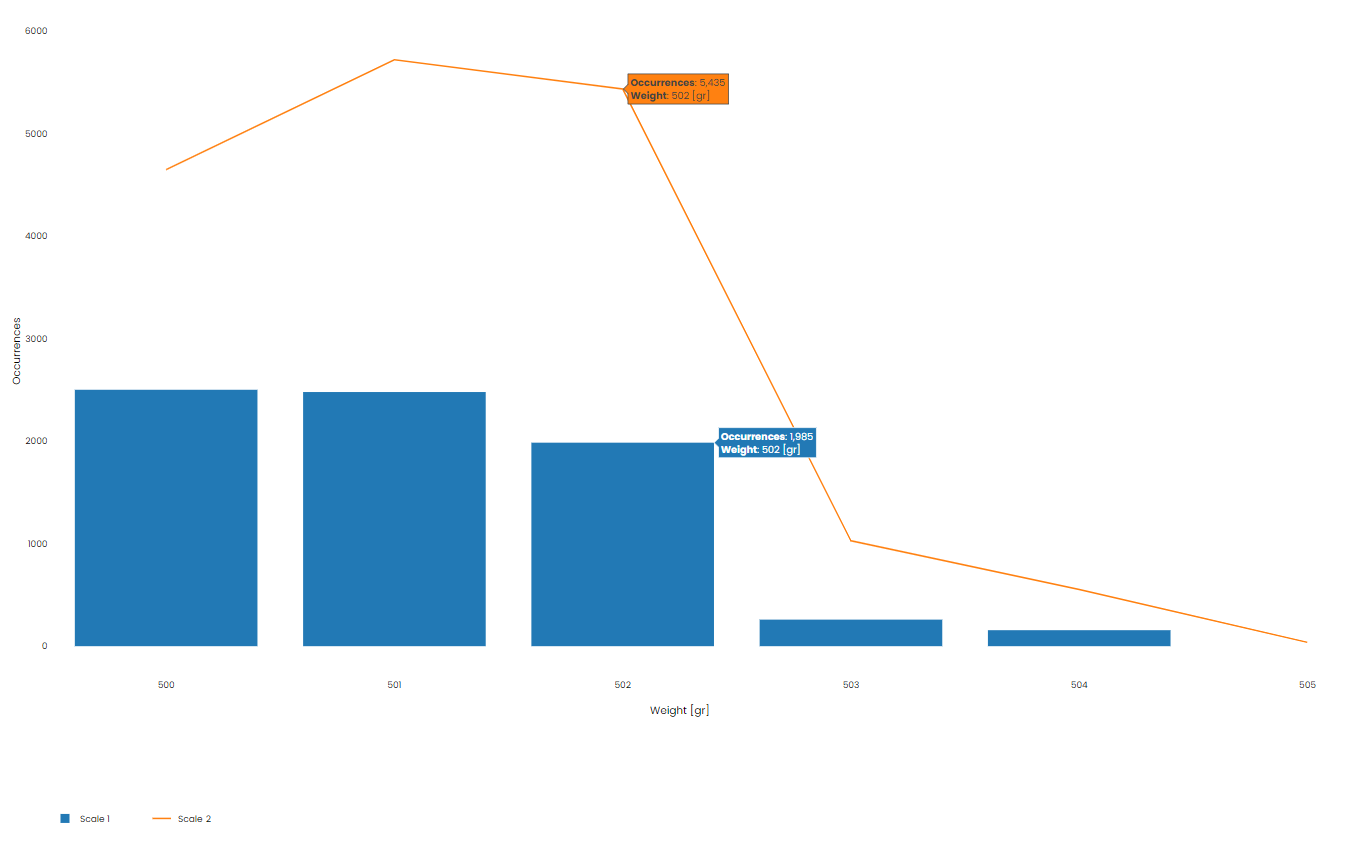

<figure><img src="https://content.gitbook.com/content/pAbYPeH0IeVsC8b0gI87/blobs/TXcGGyuFNXZWnPieNApL/netControlWeigth_detail.png" alt=""><figcaption><p>Image B</p></figcaption></figure>

In Image B, we can see two different types of charts corresponding to two different scales. For Scale 1, a bar chart is displayed, while for Scale 2, a function trace is shown. Hovering over the chart reveals detailed tooltips.

On the side of the screen, there are some interesting pieces of information for analysis purposes:

* information about the quantity produced;
* reference weights for each piece;
* information related to the product used for filling;
* average weight and standard deviation of the produced pieces;
* pieces considered "good" and the amount of product "given away";
* number of defective pieces and the amount of lost product.

On this page as well, you can select the reference time interval and apply filters.
