# Detailed Machine Analysis

The section summarizes in a single page some useful information related to the selected machine. All the information refers to the time interval, either predefined or customized, chosen by the user through a dedicated dropdown menu in the top right corner.

Dividing the screen into four quadrants, you can observe the following information:

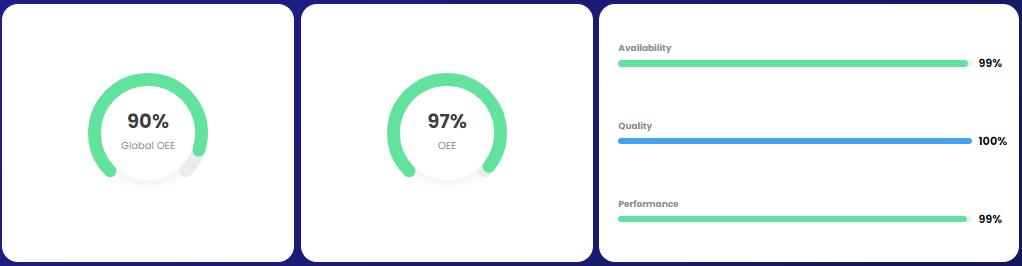

* in the top left, there are Key Performance Indicators (KPIs) related to Performance, Availability, Quality (if applicable for the current project), OEE, and Global OEE;

<figure><img src="https://content.gitbook.com/content/pCDT7ZJMfw2DQ9011gYH/blobs/bT29kUI1QvdBqGPhYMW2/detailedMAchineAnalysis_dettaglioA.png" alt=""><figcaption></figcaption></figure>

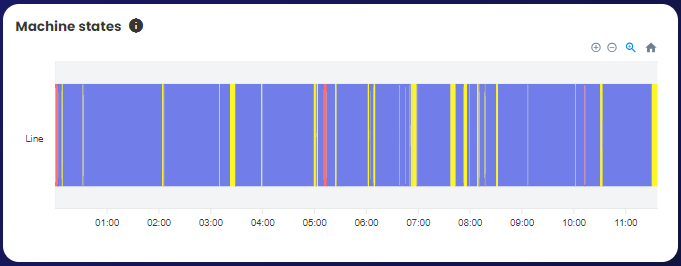

* in the top right, there is a timeline representing the sequence of states recorded for the selected machine;

<figure><img src="https://content.gitbook.com/content/pCDT7ZJMfw2DQ9011gYH/blobs/UUNxYi0zbf881q7EgQYq/detailedMAchineAnalysis_dettaglioB.png" alt=""><figcaption></figcaption></figure>

* in the bottom left, there is a Pareto chart representing the machine downtimes in the selected time interval;

<figure><img src="https://content.gitbook.com/content/pCDT7ZJMfw2DQ9011gYH/blobs/0tCGftiH3nSlgG9slNIw/detailedMAchineAnalysis_dettaglioC.png" alt=""><figcaption></figcaption></figure>

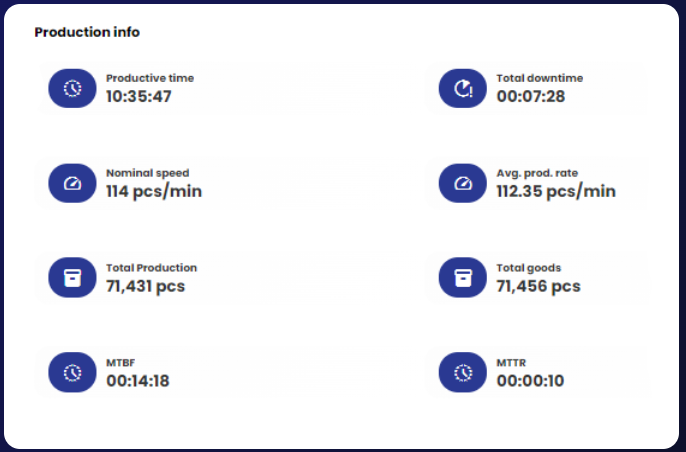

* in the bottom right, there are some KPIs providing general information about the machine, all referring to the selected time interval.

<figure><img src="https://content.gitbook.com/content/pCDT7ZJMfw2DQ9011gYH/blobs/lsQVTquTyhhifHuSWgcD/detailedMAchineAnalysis_dettaglioD.png" alt=""><figcaption></figcaption></figure>
